How to add a camera to the TrueX App, Smart Camera 4 Pro AI camera model by scanning QR Code
Start by using the power cord provided in the package, plug the power cord into the device and connect it to the adapter, then plug the adapter into a power outlet.
***Install the TrueX application on your phone and make sure your phone is connected to 2.4GHz Wi-Fi before starting the process.

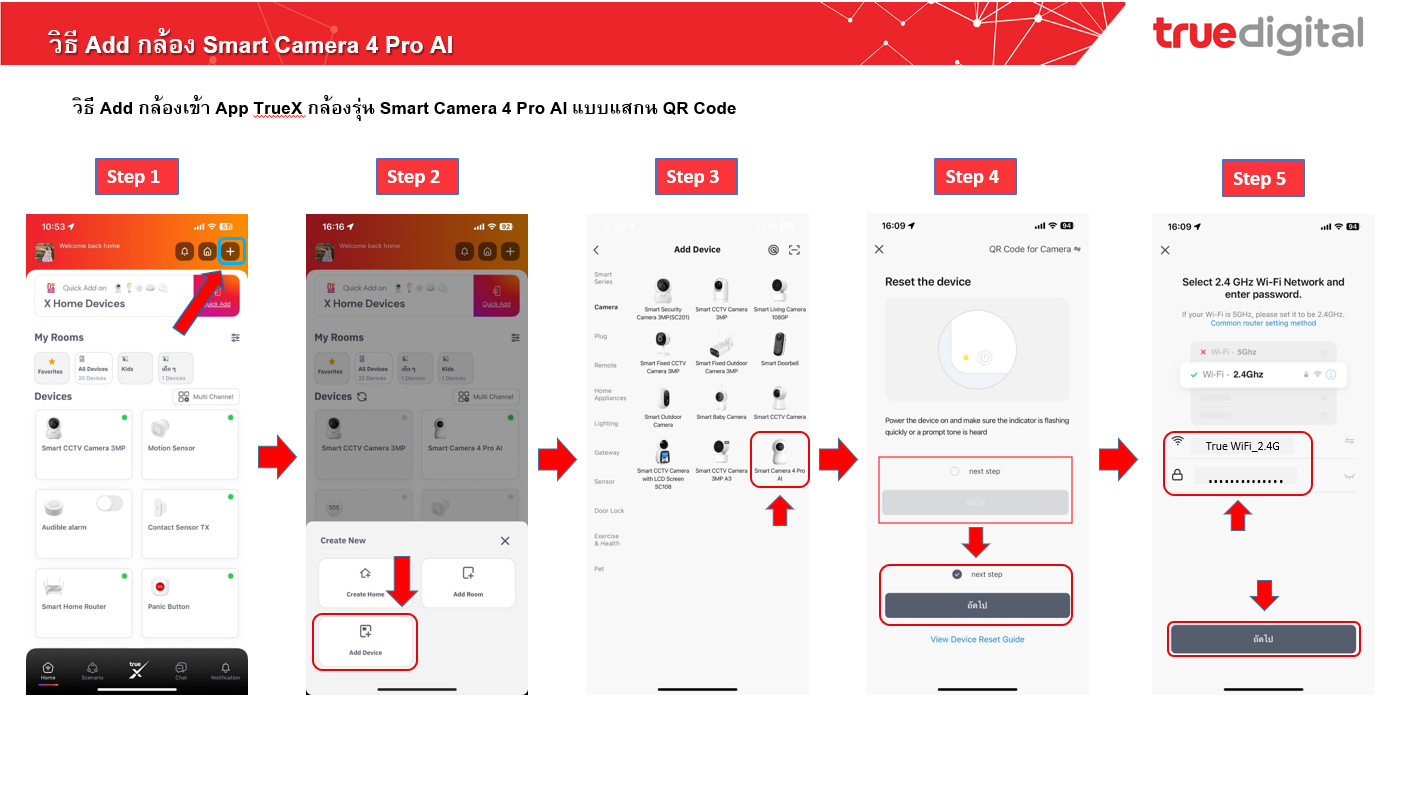

1. Open the application and select the “+” symbol in the top right corner of the home page.
2. Select “Add device”.
3. Select “CCTV” and select “Smart Camera 4 Pro AI”.
4. When you see the status light on the camera flashing red, select “next step” and select “Next”.
5. Select the Wi-Fi name and enter the correct connection password, then select “Next”. ***Wi-Fi must be 2.4 GHz only.

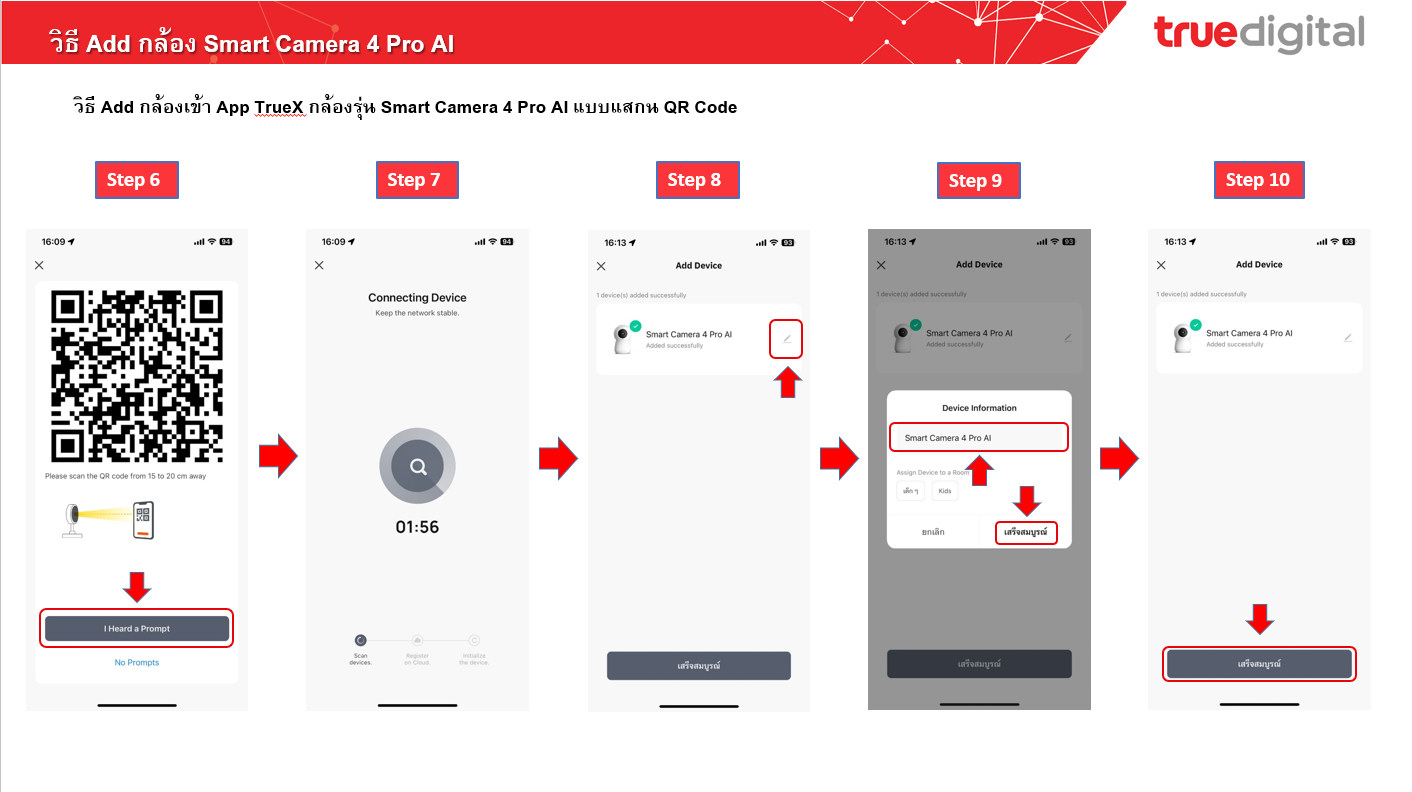

6. Scan the QR Code with the camera lens and the mobile phone screen between 15 and 20 cm. Try moving it until you hear the warning sound
“Connecting to Wi-Fi, please wait” and the status light on the camera flashing green, then select “Hear a beep”.
7. The application will display the search and connection status page after the device is successfully added. You will hear a notification sound “Camera binding is successful”
8. You can rename the device by selecting the “pencil” icon
9. Enter the name of the device as desired and select “Complete”
10. Then select “Complete” to complete the device addition process

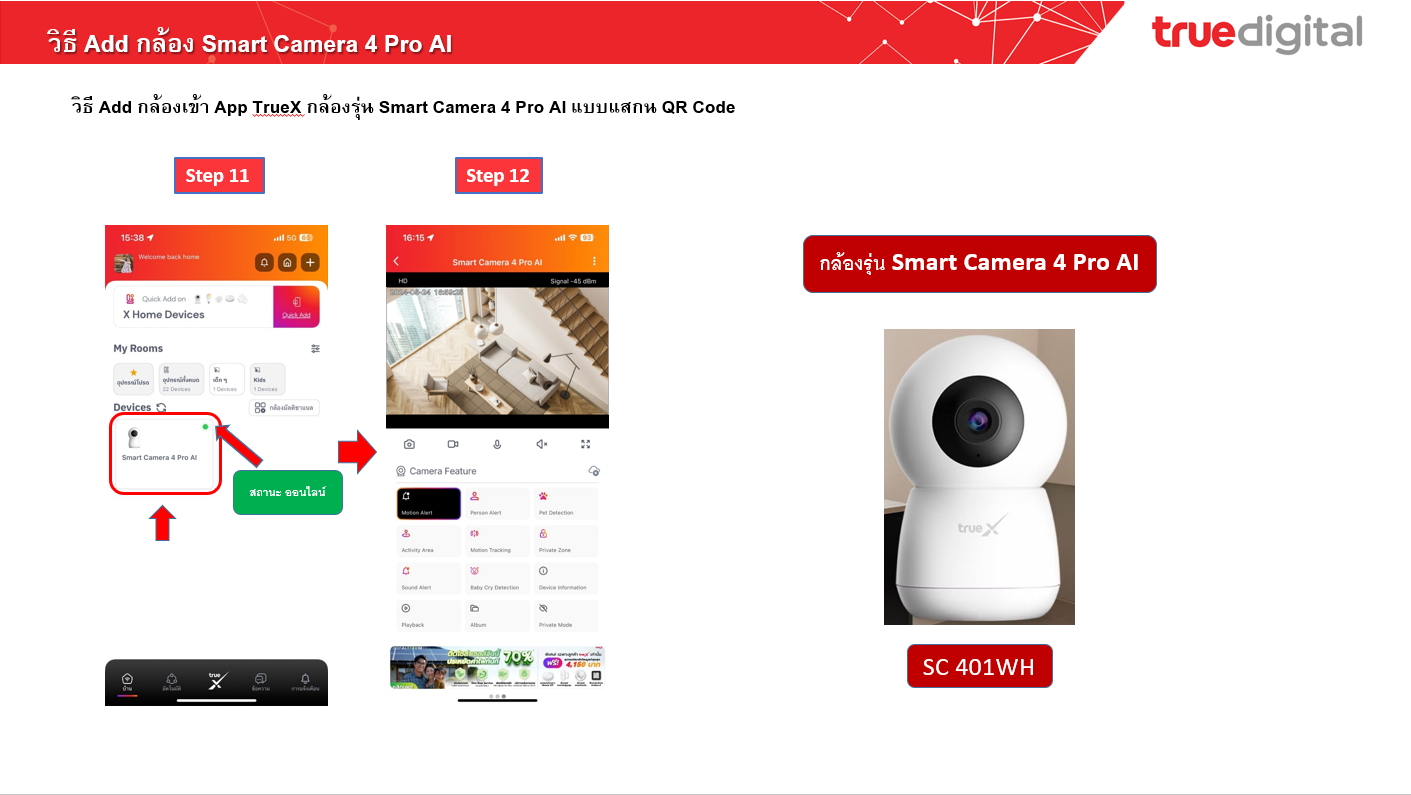

11. The application will display the added device on the home page with the green light status of the device, which means it is ready to use
12. If we select the added device on the home page, the application will display the image from the camera and other camera feature buttons
